Sintered Titanium Filter | Porous Titanium Powder

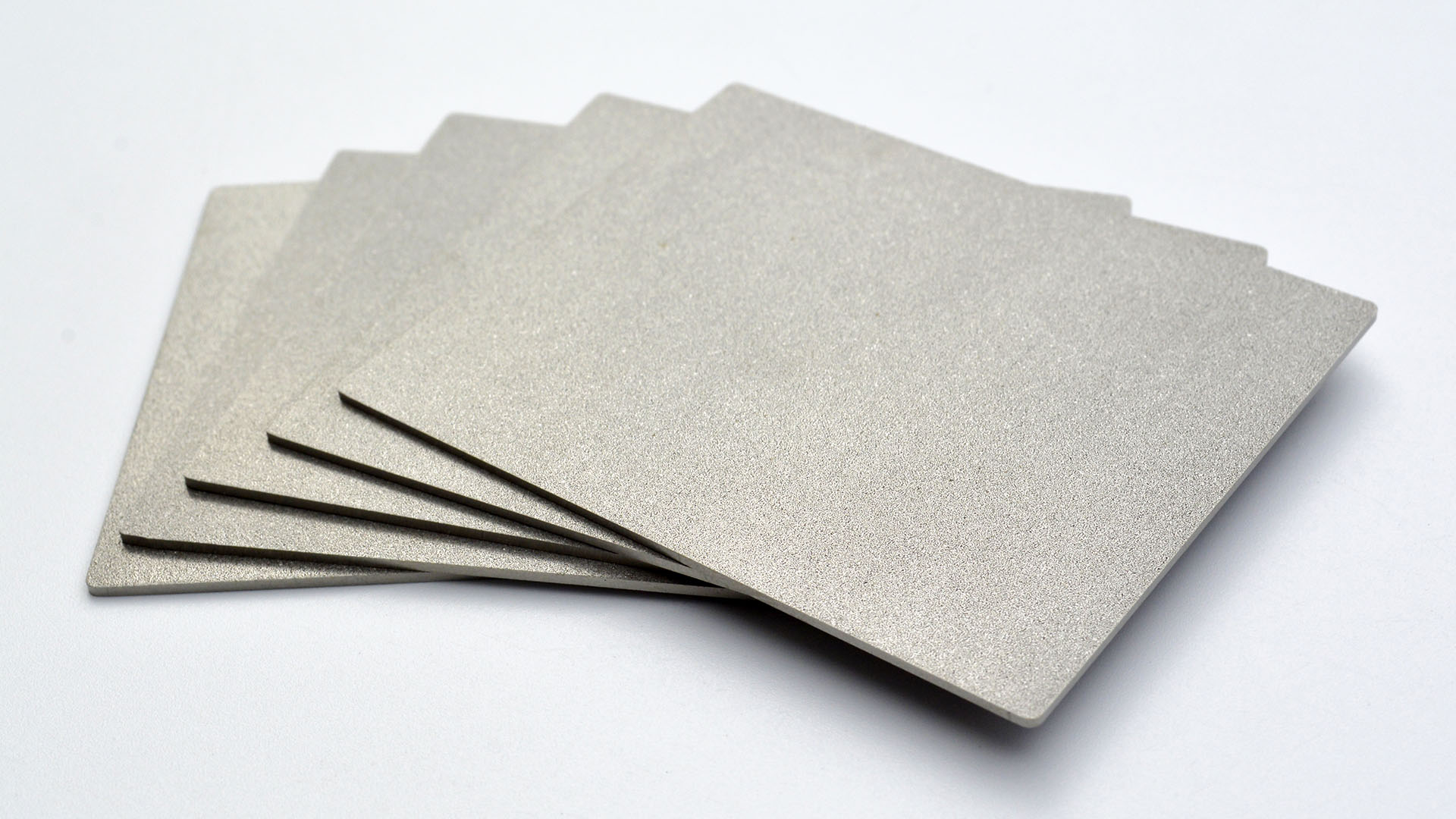

A sintered titanium filter is a type of filtration device made from titanium metal. It is created through a process called sintering, which involves compacting titanium powder at high temperatures and pressures to form a porous structure. The resulting filter has uniform pore sizes and excellent mechanical strength, making it suitable for a wide range of applications where high-temperature, high-pressure, and corrosion-resistant properties are required.

Types of Sintered Titanium Filter

Sintered Titanium Mesh Filter: This type of filter is made by sintering layers of titanium wire mesh to create a porous structure. It is commonly used for filtration of gases and liquids.

Sintered Titanium Powder Filter: This type of filter is produced by sintering titanium powder particles. It is often used in applications where fine filtration is required.

Technical parameters:

  • Filtration accuracy: 0.1μm-100μm
  • Length 50mm-1000mm, outer diameter Ø8, Ø16, Ø20, Ø 30-100mm
  • Porosity: 28-50%
  • Compressive strength: 0.5-1.5Mpa
  • Temperature resistance: ≤300 °C (wet);
  • Working pressure difference: 0.6Mpa
  • Specifications and models (seamless tubular)
  • Interface form: flat mouth type, socket type (222, 226), thread, etc., the interface can be customized
DOWNLOAD PDF

Filter Fineness / Filter Rating

Sintered titanium filters can achieve a wide range of filtration fineness depending on the specific application requirements. They can range from coarse filtration (e.g., 5 microns) to fine filtration (e.g., sub-micron levels).

Features:

  • Corrosion Resistance: Titanium is highly corrosion-resistant, making these filters suitable for filtering aggressive or corrosive substances.
  • High Temperature Resistance: Sintered titanium filters can withstand high temperatures, making them ideal for use in high-temperature environments.
  • Mechanical Strength: The sintering process imparts excellent mechanical strength to the filters, allowing them to withstand high pressures.
  • Uniform Pore Structure: The filters have a consistent and uniform pore structure, ensuring reliable and consistent filtration.
  • Cleanable and Reusable: Sintered titanium filters can often be cleaned and reused, reducing the need for frequent replacements.

Uses/Application

Sintered titanium filters find applications in various industries, including:

  • Chemical Processing: Filtration of aggressive chemicals and corrosive solutions.
  • Oil and Gas: Filtration of oil, gas, and other hydrocarbons.
  • Pharmaceuticals: Sterile filtration of pharmaceutical products.
  • Food and Beverage: Filtration of beverages, food products, and brewing processes.
  • Aerospace: Filtration in aerospace applications where lightweight and high strength are essential.
  • Water Treatment: Filtration of water, especially in environments with high temperatures or corrosive elements.
  • Petrochemicals: Filtration in refining processes and petrochemical industries.

Sintered titanium filters offer exceptional performance and durability in challenging environments, making them a preferred choice for critical filtration applications.
